Building 3D Models From Satellite Stereo Imagery
3D Mapping

Building 3D Models From Satellite Stereo Imagery

2026-09-09 XRTech Group, 3D Mapping and Geospatial Engineering Team

On this page

Building 3D models from satellite stereo imagery starts with something deceptively simple: two pictures of the same rooftop, taken from two different points in orbit. Everything downstream of that, the elevation grid, the building height, the box-model city block that eventually lands inside a digital twin, gets calculated from the tiny geometric difference between those two views.

Quick answer

3D models from satellite imagery are built by capturing two or more images of the same location from different orbital angles, stereo pairs or tri-stereo triplets, and processing them through photogrammetry and AI-based computer vision. Dedicated satellites like GF-7 and ZY-3 capture native stereo or tri-stereo geometry in a single pass, while agile platforms such as SuperView-2 and SuperView Neo-1 are tasked for stereo collection on demand. The resulting depth data produces Digital Elevation Models (DEM), Digital Surface Models (DSM), simplified 3D Building White Models, and full 3D Digital Twins, delivered in GIS, CAD, or 3D-rendering formats such as GeoTIFF, DWG, OBJ, or 3D Tiles.

What building 3D models from satellite stereo imagery actually involves

The underlying method is photogrammetry: capture the same ground location from two or more orbital angles, measure how far a given rooftop, ridge, or road edge shifts between the two views (its parallax), and use that shift to calculate height. Two images from two angles is a stereo pair. Three images, typically forward, nadir, and backward looking, is a tri-stereo triplet, which adds redundancy and improves accuracy in tall, shadow-heavy urban scenes. Either way, this depth-sensing approach is what turns a flat optical image into height-aware 3D data, the foundation for DEMs, DSMs, building white models, and full 3D digital twins used across urban planning, construction monitoring, and disaster management.

Diagram of satellite stereo acquisition showing two orbital positions capturing overlapping images, a resulting point cloud, and the DSM, mesh, and 3D city model built from it
The full chain in one picture: two orbital positions capture overlapping views, the parallax between matching points builds a point cloud, and that point cloud becomes a DSM, then a mesh, then a finished 3D city model.

Key satellites for stereo and tri-stereo acquisition

Not every optical satellite can do this. Building usable 3D data takes a sensor that's either purpose-built for stereo geometry or agile enough to be re-tasked for it on the same pass.

GF-7 is China's first sub-meter dedicated stereo mapping satellite. Its dual-linear CCD camera looks forward at +26° and backward at -5° on the same orbital pass, so every scene comes back as a native stereo pair without any special tasking. A two-beam laser altimeter rides alongside it, pushing vertical accuracy to ≤0.5 m RMS on flat terrain, precise enough for 1:10,000 scale mapping.

ZY-3 (01/02/03) takes a different approach: a civilian stereomapping constellation built around a three-camera array, forward, backward, and nadir, shooting at 2.1 m nadir resolution. Rather than one-off tasking, the constellation is used to continuously build and update a 1:50,000 global DEM database.

ZY-3 satellite imagery of Palm Jumeirah, Dubai, showing the dense coastal and urban geometry captured for stereomapping and DEM production
Dense, geometrically complex coastlines like Palm Jumeirah are exactly what ZY-3's three-camera stereo array is built to resolve into an accurate elevation model.

SuperView-2 (GFDM) is an agile 0.42 m satellite that gets tasked for stereo work rather than capturing it by default. It can shoot a stereo pair at a 30° or 47° viewing angle, or a full tri-stereo triplet at 47° across an 80 km swath, making it a strong fit for dense urban canyons and high-rise districts where a single viewing angle would leave tall buildings occluded by their own shadows.

GF-7 0.65 meter resolution satellite imagery of a dense radial street grid in Dubai City, used for stereo mapping and 3D model generation
0.65 m GF-7 imagery over a dense radial street grid in Dubai. Stereo geometry like this is what lets the same scene resolve into building footprints, height, and a full 3D model rather than a flat picture.

Beijing-3A, SuperView-1, and SuperView Neo-1 round out the options: high-agility optical constellations that aren't dedicated stereo satellites but can be tasked for sub-meter stereo collection across large areas, useful when a project needs city-wide 3D terrain and urban modeling rather than a single dense site.

Satellites used for stereo and tri-stereo 3D model generation
Satellite / constellationResolutionStereo geometryBest suited for
GF-70.65 m PAN, dual-linear CCDNative stereo every pass (+26° / -5°) plus laser altimeterSub-meter DEMs, ≤0.5 m RMS vertical accuracy, 1:10,000 scale mapping
ZY-3 (01/02/03)2.1 m nadirNative tri-stereo every pass (forward, nadir, backward)Continuous 1:50,000 global DEM database production
SuperView-2 (GFDM)0.42 mTasked stereo (30°/47°) or tri-stereo (47°, 80 km swath)Dense urban canyons and high-rise modeling
Beijing-3A / SuperView-1 / SuperView Neo-1Sub-meterTasked stereo pairsLarge-scale, city-wide 3D terrain and urban modeling

Technical workflow: from stereo image pairs to 3D models

Turning a stereo pair into a usable 3D model runs through an automated photogrammetric and AI pipeline, not a manual trace.

01. Stereo image pair acquisition

The satellite captures left and right views (stereo) or forward, nadir, and backward views (tri-stereo) of the same location during a single orbital pass, giving the pipeline the overlapping geometry it needs to measure depth.

02. AI-based feature and contour extraction

Deep learning models scan the optical imagery and automatically pull out building footprints and roof top contours, the same extraction step used in automated change detection and mapping pipelines.

03. Contour regularization

Raw extracted edges get cleaned up through principal-direction adjustment, redundant point simplification, and sharp-angle elimination, so a building's outline matches its actual geometric shape instead of a jagged pixel boundary.

04. Adhesion segmentation

Buildings sitting close together get separated so they aren't extracted as a single blob: height-difference segmentation splits structures of different heights, and common-edge construction splits handle adjacent buildings of similar height.

05. Homonymous contour pairing and elevation correction

The algorithm matches corresponding contours between the left and right stereo views and adjusts each polygon pair for maximum overlap. That overlap identifies the building's true top elevation, and subtracting the ground elevation underneath it gives an exact building height, no ground survey required.

Elevation point cloud showing rooftops and tree canopy on one color band separated from bare ground on another, the same height-differencing logic used in stereo elevation correction
The same principle behind step 05: rooftops and canopy sit on one elevation band, bare ground on another, and the difference between them is what the algorithm resolves into a building height.

06. 3D model generation

The regularized vector geometry and the calculated height data assemble into the final 3D model, ready to export as a DEM, DSM, building white model, or textured city model depending on what the project needs.

Primary 3D model deliverables

The same stereo pipeline feeds four related but distinct output products, and knowing which one a project actually needs is most of the battle.

Digital Elevation Models (DEM) represent the bare-earth ground surface with buildings and vegetation stripped out, while Digital Surface Models (DSM) keep every surface feature standing, rooftops, bridges, canopy trees included. Both are typically delivered at 2 to 10 meter grid spacing with ±3 m vertical RMSE accuracy.

3D digital surface model of a city showing buildings, streets, and a river, illustrating how a DSM retains every surface structure a bare-earth DEM removes
A DSM generated from the same stereo pipeline, buildings, streets, and river channel all intact, the surface a DEM would strip back down to bare ground.

Building White Models are the simplified, untextured 3D "box models" that come directly out of the contour and height data: no facades, no rooftop detail, just the exact footprint, height, and 3D shape of each structure. That simplicity is the point, they serve as standard base data for large-scale city displays, urban planning, housing administration, and disaster assessment without the rendering overhead heavy textures would add.

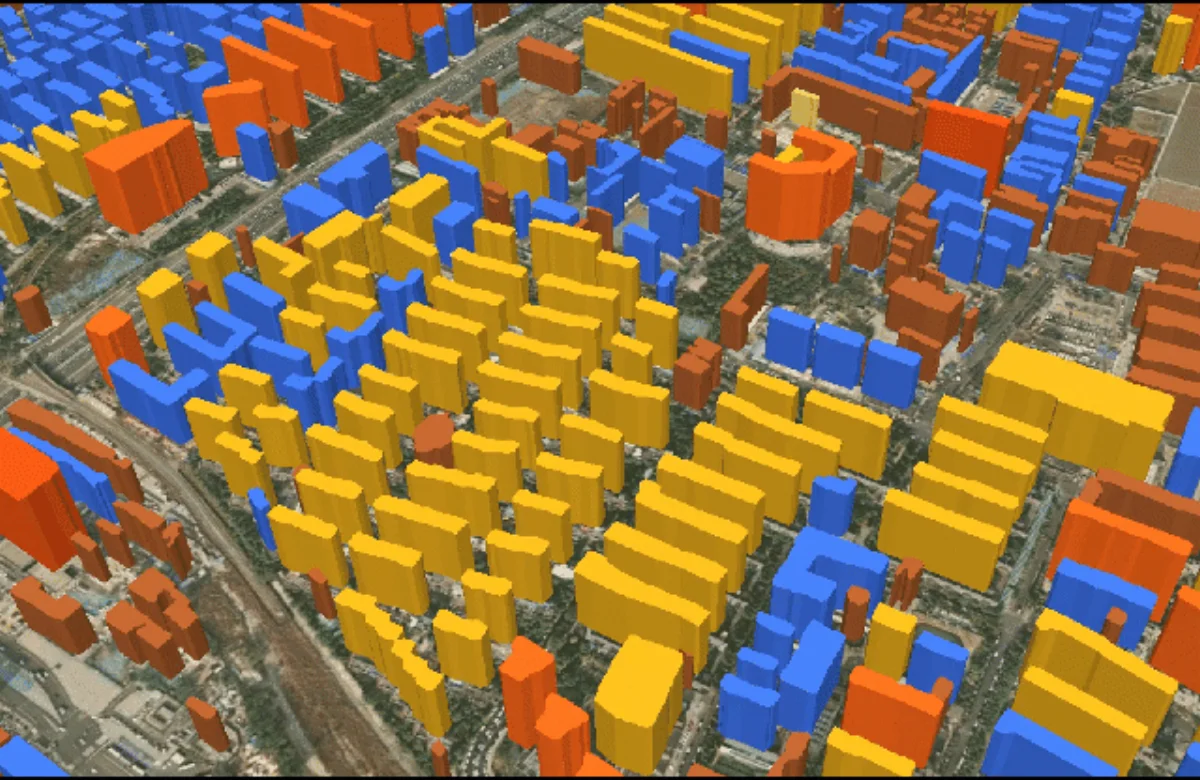

3D white model of a city block showing extruded box-model buildings color-coded by height, generated from extracted stereo contours
Footprint plus height, nothing else: this is a building white model, generated straight from stereo contours without a texturing pass.

3D City Models and Digital Twins sit at the top of the stack: high-resolution digital replicas that combine 3D terrain, building contours, and real-world rendering into one scene. Layered with IoT feeds, spatial big data, and GIS data, they become the operating picture behind smart park management, airport operations, flood simulations, and urban growth monitoring.

Photorealistic 3D city model with rendered skyscrapers, streets, bridges, and a river, representing a fully textured digital twin built from stereo-derived elevation and building data
The same footprint and height data as a white model, taken one step further with real-world rendering, the level of detail a 3D digital twin runs on.
3D model deliverables at a glance
DeliverableWhat it representsTypically used for
DEMBare-earth ground surface, 2–10 m spacing, ±3 m RMSEHydrology, terrain analysis, flood modeling
DSMFull surface including buildings, bridges, canopyUrban drainage analysis, line-of-sight studies, canopy assessment
Building white modelUntextured 3D box model per building, footprint plus heightCity-wide displays, urban planning, housing administration, disaster assessment
3D city model / digital twinFully rendered replica combining terrain, buildings, and live data layersSmart park management, airport operations, flood simulation, growth monitoring

Where these 3D models actually get used

Once a stereo-derived model exists, it tends to get reused across several teams rather than sitting inside a single department's GIS folder.

  • Urban planning: building white models and DSMs give planning departments an up-to-date, city-wide base layer for zoning review and scheme comparison without commissioning a new aerial survey each time.
  • Construction and infrastructure monitoring: stereo-derived height data tracks a build's progress against its planned massing, and repeat acquisitions catch deviations early.
  • Disaster management and flood risk planning: a bare-earth DEM combined with a DSM exposes exactly where buildings and terrain will block or channel floodwater, letting planners model inundation before a storm arrives rather than after.
  • Smart park and airport operations: a 3D digital twin layered with IoT sensor feeds gives operations teams one live view of a site instead of separate CAD drawings, sensor dashboards, and satellite images.
  • Urban growth monitoring: comparing white models generated from repeat stereo tasking over time shows exactly which blocks changed, and by how much, without re-surveying the whole city.

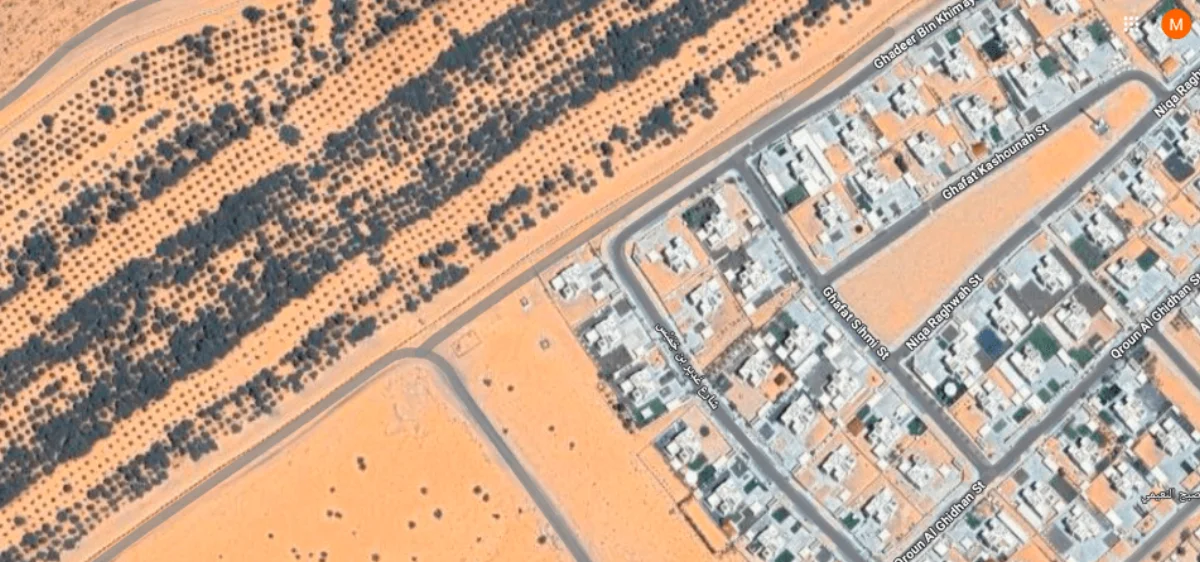

Satellite stereo imagery showing agricultural rows transitioning into a residential development, used for terrain and drainage-aware planning
Terrain and building layout at the edge of a growing development, the kind of stereo-derived elevation detail flood-risk and drainage planning depends on before construction moves in.

Pricing and data compatibility

Stereo and tri-stereo tasking cost more than a standard mono capture, for a straightforward reason: the satellite has to shoot the same scene from multiple angles instead of one.

2× mono price.

Standard cost multiplier for stereo (two-angle) satellite imagery collection.

3× mono price.

Standard cost multiplier for tri-stereo (three-angle) satellite imagery collection.

Deliverables are exported in formats that plug directly into whatever software a team already runs, no intermediate conversion step required.

3D model file format compatibility
EcosystemFormats
GISGeoTIFF, SHP
CAD / engineeringDWG, IFC
3D rendering and visualizationOBJ, OSGB, 3D Tiles, i3S, S3M, FBX

Key takeaways

  • 3D models are built from two or more satellite images of the same location taken at different orbital angles, stereo pairs or tri-stereo triplets, processed through photogrammetry and AI.
  • GF-7 and ZY-3 capture native stereo or tri-stereo geometry on every pass; SuperView-2, Beijing-3A, SuperView-1, and SuperView Neo-1 get tasked for stereo collection on demand.
  • The workflow runs through AI contour extraction, contour regularization, adhesion segmentation, and homonymous contour pairing before assembling the final 3D model.
  • The same pipeline produces four distinct deliverables: bare-earth DEMs, full-surface DSMs, untextured building white models, and fully rendered 3D digital twins.
  • Stereo imagery is priced at 2× the standard mono cost, and tri-stereo at 3×, with deliverables available in GeoTIFF, SHP, DWG, OBJ, OSGB, 3D Tiles, i3S, S3M, FBX, and IFC.

Frequently asked questions

How are 3D models built from satellite stereo imagery?

3D models are built by capturing two or more satellite images of the same location from different orbital angles, then using photogrammetry and AI-based computer vision to measure the parallax between them. That depth data is used to extract building footprints, calculate elevation and building height, and assemble a finished 3D model, DEM, DSM, building white model, or digital twin.

What is the difference between stereo and tri-stereo satellite imagery?

Stereo imagery uses two images of the same location captured from two different angles, typically forward and backward looking. Tri-stereo adds a third, nadir (straight-down) image, giving three viewing angles instead of two. The extra angle improves accuracy in tall, shadow-heavy urban scenes where a single stereo pair might leave part of a building occluded.

Which satellites are used for stereo or tri-stereo 3D mapping?

GF-7 and the ZY-3 constellation (01/02/03) capture native stereo or tri-stereo geometry on every orbital pass. Agile satellites such as SuperView-2, Beijing-3A, SuperView-1, and SuperView Neo-1 aren't dedicated stereo sensors but can be tasked to collect stereo pairs or tri-stereo triplets on demand.

What is a building white model?

A building white model is a simplified, untextured 3D box model that reflects a building's exact footprint, height, and basic 3D shape, generated directly from stereo-extracted contours and elevation data. It serves as standard base data for city-wide displays, urban planning, housing administration, and disaster assessment without the processing overhead of a fully textured model.

What is the difference between a DEM and a DSM?

A Digital Elevation Model (DEM) represents the bare-earth ground surface with buildings and vegetation removed. A Digital Surface Model (DSM) keeps every surface feature in place, including rooftops, bridges, and tree canopy. Both are commonly delivered at 2 to 10 meter grid spacing with roughly ±3 meter vertical RMSE accuracy.

How much more expensive is stereo or tri-stereo satellite imagery than standard imagery?

Stereo satellite imagery is typically priced at twice the cost of standard mono imagery, and tri-stereo imagery at three times the mono cost, reflecting the additional orbital passes or viewing angles needed to capture the extra images.

What file formats do 3D satellite-derived models come in?

3D model deliverables are typically provided in GeoTIFF and SHP for GIS software, DWG and IFC for CAD and engineering workflows, and OBJ, OSGB, 3D Tiles, i3S, S3M, or FBX for 3D rendering and visualization platforms, chosen to match whatever software a project already uses.

Can stereo-derived 3D models be used outside of urban planning?

Yes. Beyond urban planning, the same stereo-derived DEMs, DSMs, and 3D city models support construction and infrastructure progress monitoring, disaster management and flood risk simulation, smart park and airport operations through digital twins integrated with IoT sensors, and ongoing urban growth monitoring through repeat tasking.

Sources and further reading

  • China Siwei and CRESDA: GF-7 dual-linear CCD stereo camera and laser altimeter specifications
  • CNSA and CRESDA: ZY-3 (01/02/03) three-line array stereomapping and global DEM production specifications
  • China Siwei: SuperView-2 (GFDM), Beijing-3A, SuperView-1, and SuperView Neo-1 agile tasking specifications
  • XRTech Group: 3D model deliverable formats, stereo and tri-stereo pricing schedule, 2026
